Front Mudguard

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front splash shield No. 2. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
Remove the screws.

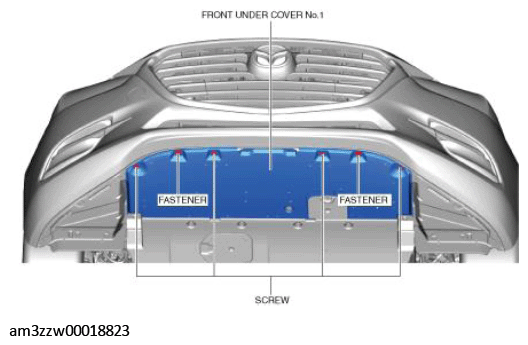

Fig 1: Locating Fastener And Screw On Front Mudguard
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners.
Partially peel back the front under cover No. 1.

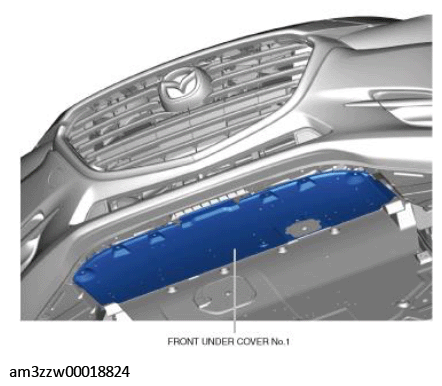

Fig 2: Front Under Cover No. 1 Location
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

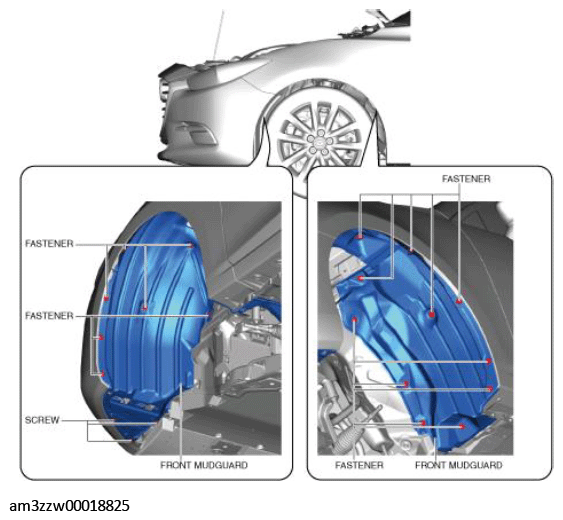

Fig 3: Fastener And Screw Location On Front Mudguard
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners.
Remove the front mudguard in the direction of the arrow shown in the figure.

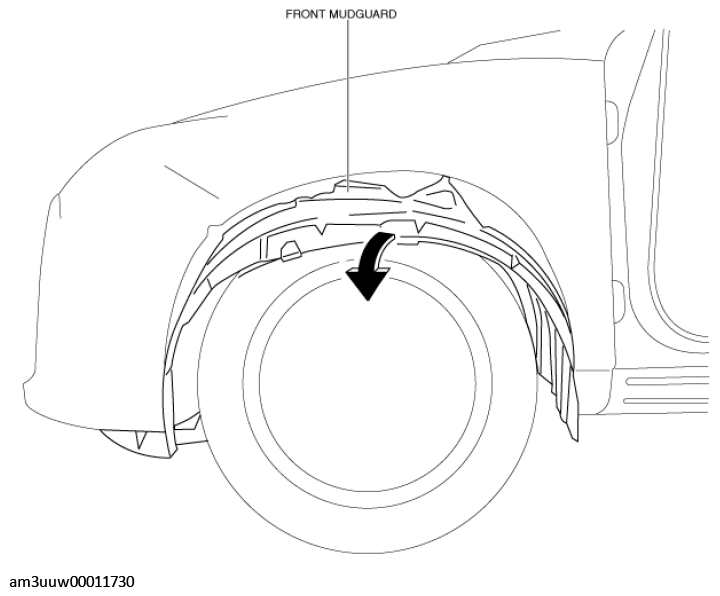

Fig 4: Removing Front Mudguard
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
