Front Door Garnish Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
- Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)

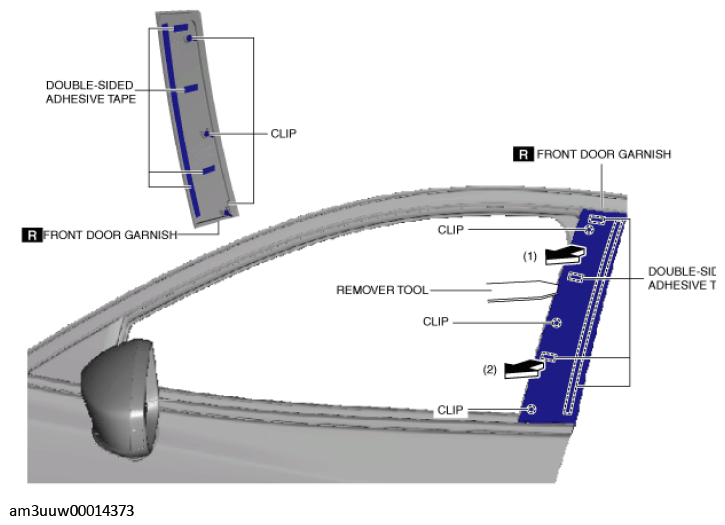

- Using a remover tool, remove the clips in the direction of the arrow (1), (2) shown in the figure.
- Remove the double-sided adhesive tape in the position shown in the figure using a utility knife, remove the front door garnish from the body.
- Install in the reverse order of removal. (See FRONT DOOR GARNISH INSTALLATION NOTE .)
