DTC U0074; Can System Communication Error (Local Can Between Pcm And TCM)
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC U0074:00 |
CAN system communication error (local CAN between PCM and TCM) |
| DETECTION CONDITION |
- Malfunction in CAN bus communication line.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2) is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |

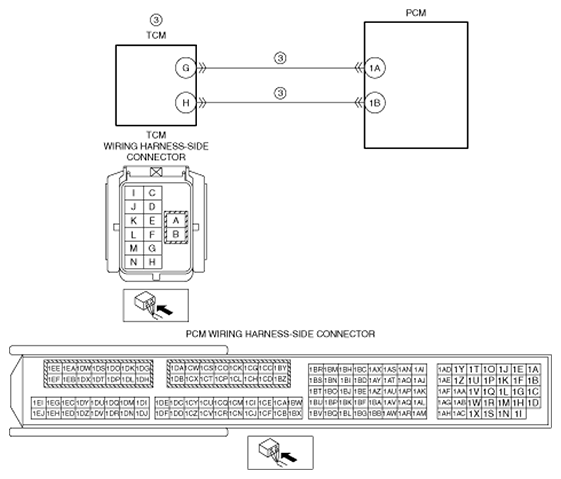

- CAN communication line malfunction between PCM and TCM (local CAN between PCM and TCM)
- TCM terminal G-PCM terminal 1A
- TCM terminal H-PCM terminal 1B
- TCM DTC is stored.
- PCM malfunction
- TCM malfunction
|
|
|
