Oil Pump Driven Sprocket Removal Note (SKYACTIV-G 2.0)
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

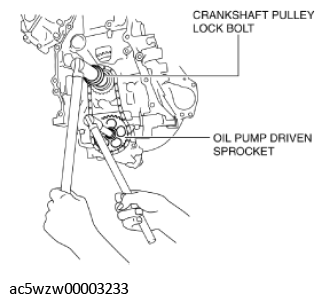

- Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Remove the oil pump driven sprocket.
- Remove the temporarily assembled crankshaft pulley lock bolt.
