No. 3 Engine Mount Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips shown in the figure and set the ground cable aside.

Fig 1: Removing Clips
Courtesy of MAZDA MOTORS CORP.

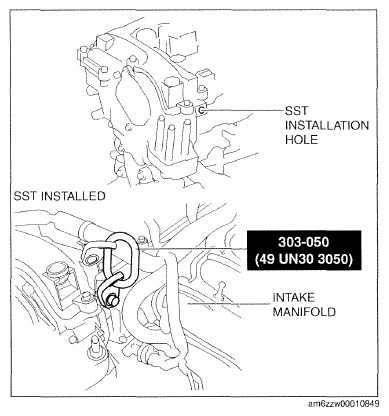

Install the SST and the following bolt to the position shown in the figure.

Fig 2: Installing SST
Courtesy of MAZDA MOTORS CORP.

Bolt:

part number 99794 1025 or an M10 x 1.25, length 25 mm {0.98 in}

Tightening torque

38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
CAUTION:
- Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.

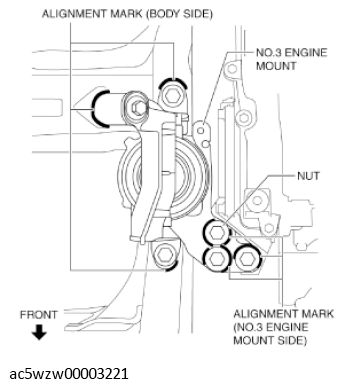

Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

Fig 3: Placing Alignment Marks On Locations
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.
Install the SST using the following procedures.
CAUTION:
- Refer to the SST instruction manual for the basic handing procedure.
NOTE:
- Install front foot No. 2 to the left and right front shafts of the SST.
Fig 4: Installing Front Foot No. 2 To Left And Right Front Shafts Of SST
Courtesy of MAZDA MOTORS CORP.

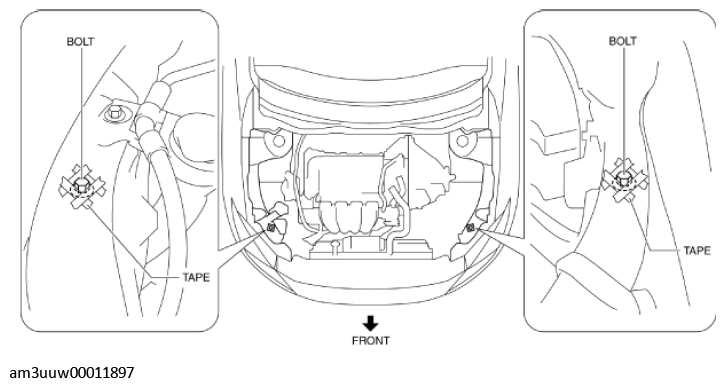

1. Protect the positions shown in the figure using tape.

  Fig 5: Protecting Bolt Positions Using Tape
  Courtesy of MAZDA MOTORS CORP.

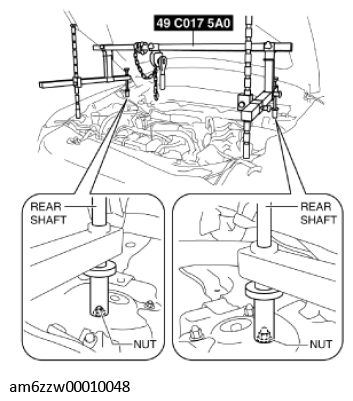

2. As shown in the figure, set the rear shafts of the SST to the left and right shock absorber nuts.

  Fig 6: Installing Rear Shafts Of SST To Left And Right Shock Absorber Nuts
  Courtesy of MAZDA MOTORS CORP.

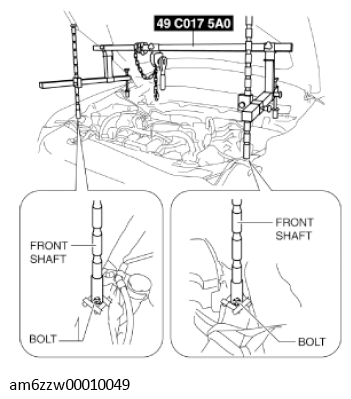

3. As shown in the figure, set the front shafts of the SST to the left and right bolts.

  Fig 7: Installing Front Shafts Of SST To Left And Right Bolts
  Courtesy of MAZDA MOTORS CORP.

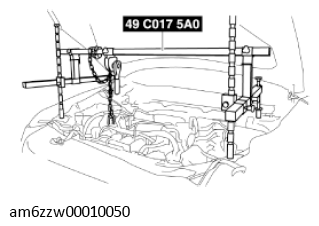

4. Adjust the height of the left and right side bars of the SST so that they are leveled, then tighten each part.

  Fig 8: Adjusting Height Of Left And Right Side Bars Of SST
  Courtesy of MAZDA MOTORS CORP.
5. Apply tension to the chain to hold the engine.
Remove the No. 3 engine mount.
