Rear Oil Seal Installation Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Apply clean engine oil to the inner surface of a new rear oil seal.
- Insert the rear oil seal into the cylinder block by hand.

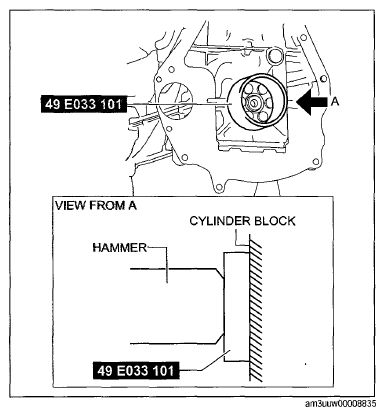

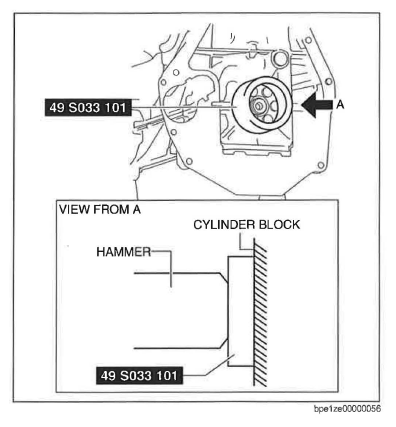

- Tap the oil seal in evenly using the SST and a hammer.
SKYACTIV-G 2.0
SKYACTIV-G 2.5
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.

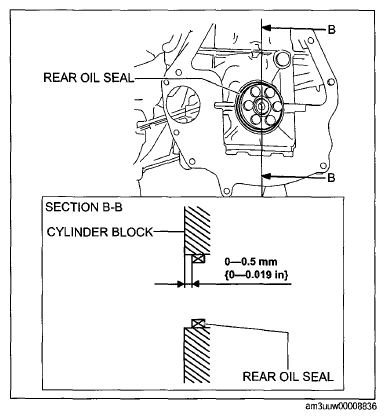

Rear oil seal press on amount
0-0.5 mm {0-0.019 in}
