Plug Hole Plate Removal/Installation: Removal

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

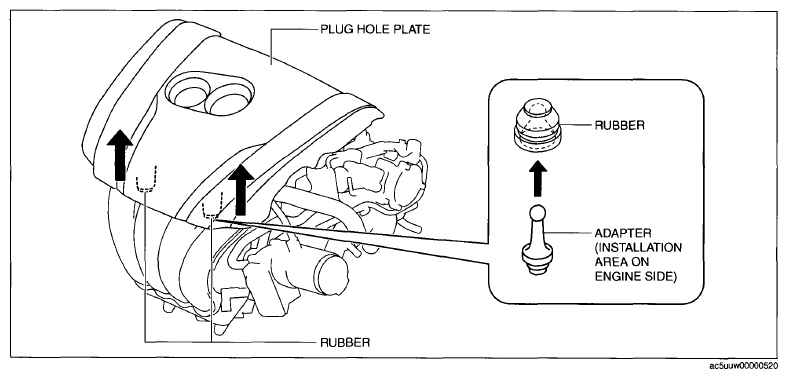

  1. Pull up the front part of the plug hole plate at the same time and remove the rubber from the adapter on the engine side.
    Fig 1: Removing Rubber From Adapter On Engine Side
    G09074083Courtesy of MAZDA MOTORS CORP.

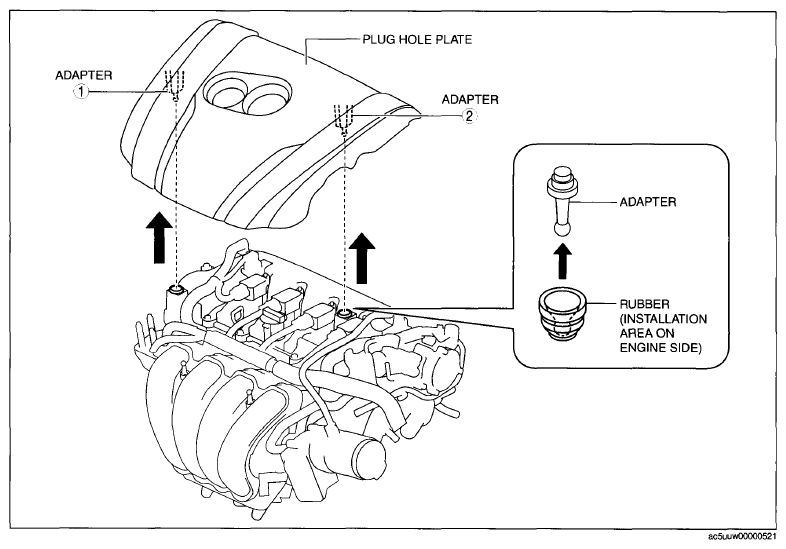

  2. Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.
Fig 2: Pulling Up Plug Hole Plate
G09074084Courtesy of MAZDA MOTORS CORP.
