Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The idler is only installed to vehicles without A/C.
Part Inspection

Connect battery to terminal A of magnetic clutch and ground to idler body.

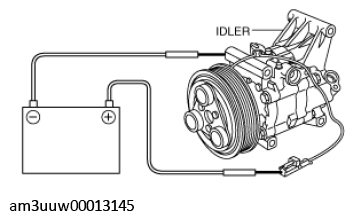

Fig 1: Connecting Battery Terminal A Of Magnetic Clutch And Ground To Idler Body
Courtesy of MAZDA MOTORS CORP.

Fig 2: Magnetic Clutch Connector Terminal A
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If there is any malfunction, replace the stator. (See IDLER DISASSEMBLY/ASSEMBLY .)
