Idler Pulley Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the idler pulley using the SST (49 0839 425C, 49 U027 001).

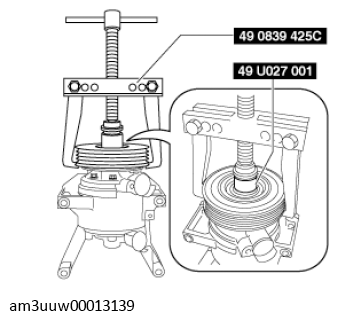

Fig 1: Removing Idler Pulley Using SST
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Keep the tab of the SST (49 0839 425C) off the stator.

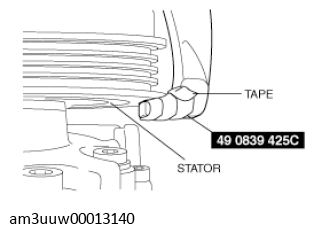

Fig 2: Taping Tab Of SST
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Wrap tape around the tab to prevent damage.
