Idler Pulley Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Set the SST (49 F034 207) as shown in the figure.

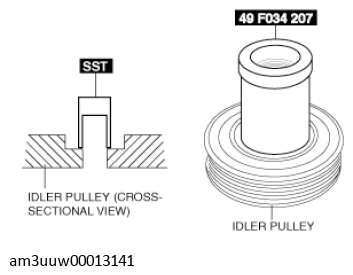

Fig 1: Installing SST
Courtesy of MAZDA MOTORS CORP.
Install the idler pulley using the SST (49 0839 425C, 49 F034 207).

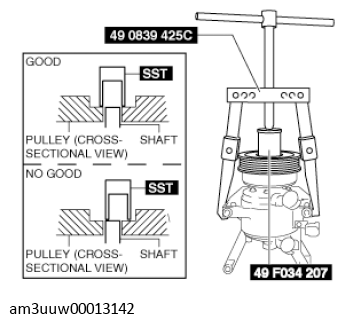

Fig 2: Installing Idler Pulley Using SST

Courtesy of MAZDA MOTORS CORP.

CAUTION:

If the SSTs are not properly positioned when the idler pulley is press-fit, the idler axle will interfere with the SSTs, possibly damaging component parts. Verify that the SST and axle are properly positioned and perform the press-fit procedure very carefully.
