Timing Chain Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the tension on the timing chain using the following procedure:
    NOTE:
    • Release the tension on the timing chain by securing the timing chain tensioner arm through the service hole on the engine front cover.
    1. Rotate the crankshaft clockwise so that cylinder No. 1 is positioned around before top dead center (TDC) as shown in the figure.

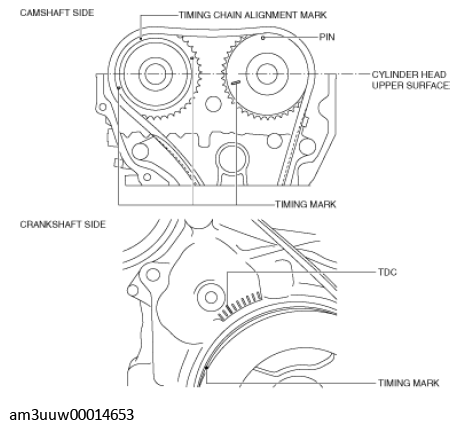

      Fig 1: Rotating Crankshaft Clockwise
      G11550101Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • With cylinder No. 1 positioned around before top dead center (TDC), there is no large movement (rotation) of the exhaust camshaft when the timing chain is removed. Therefore, installation of the electric variable valve timing actuator to the camshaft will be easier. (If there is a large movement of the exhaust camshaft, installation of the electric variable valve timing actuator to the camshaft must be performed while loosening the chain by rotating the exhaust camshaft.)
    2. Remove the blind plugs (upper and lower) on the engine front cover service holes.

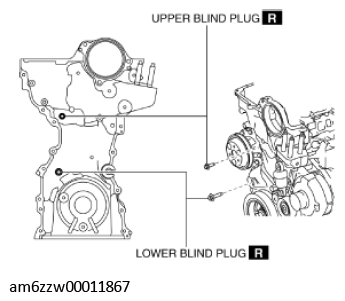

      Fig 2: Removing Blind Plugs (Upper And Lower) On Engine Front Cover Service Holes
      G11429872Courtesy of MAZDA MOTORS CORP.
    3. Insert an M6 bolt (35-60 mm {1.4-2.3 in} length with thread to the end) to the upper service hole and tighten it until it contacts the tensioner arm, then loosen it approx. 180 degrees (set the bolt so that it sits slightly in front of the tensioner arm).

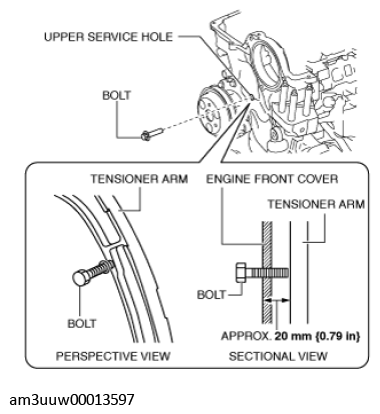

      Fig 3: Inserting Upper Service Hole M6 Bolt
      G11550103Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • The bolt contacts the tensioner arm when it is inserted approx. 20 mm {0.79 in}.
      • Hold the exhaust camshaft using a wrench on the cast hexagon and move it back and forth a few times as shown in the figure. This will drain the oil from the chain tensioner and make the following servicing easier.
      Fig 4: Holding Exhaust Camshaft Using Wrench On Cast Hexagon
      G11429874Courtesy of MAZDA MOTORS CORP.
    4. Verify the chain tensioner shape from the lower service hole and identify the chain tensioner type.
      NOTE:
      • Verifying the chain tensioner type is necessary because the following procedures may differ according to the type of tensioner.

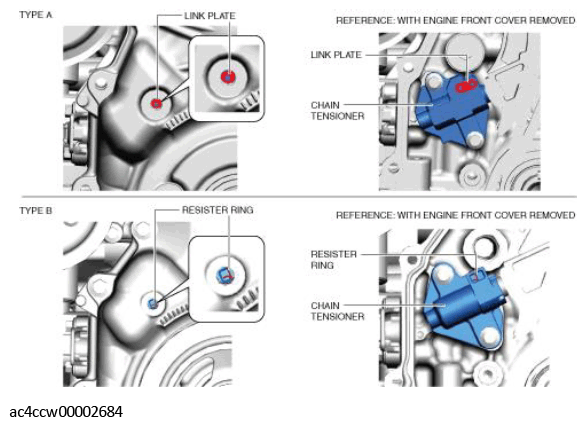

      Fig 5: Chain Tensioner Shape From Lower Service Hole Location
      G11550105Courtesy of MAZDA MOTORS CORP.
    5. Insert a precision screwdriver into the lower service hole. (chain tensioner (type A))
    6. While moving the exhaust camshaft back and forth in the direction of the arrow using a wrench on the cast hexagon, press down the link plate of the timing chain tensioner using a precision screwdriver and release the plunger lock. (chain tensioner (type A))
      Fig 6: Holding Exhaust Camshaft Using Wrench On Cast Hexagon
      G11429874Courtesy of MAZDA MOTORS CORP.

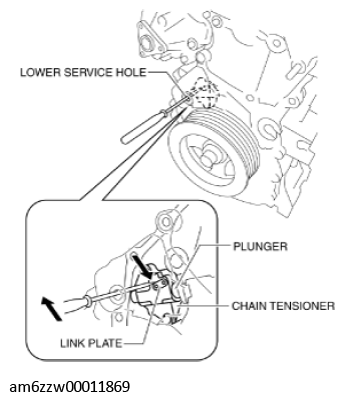

      Fig 7: Pressing Down Link Plate Of Timing Chain Tensioner Using Precision Screwdriver
      G11429877Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • When moving the exhaust camshaft back and forth, the timing chain pushes the plunger in the chain tensioner making it easier to operate the link plate.
    7. Insert a thin flathead screwdriver (precision screwdriver) into the lower service hole and press the chain tensioner resister ring. (chain tensioner (type B))

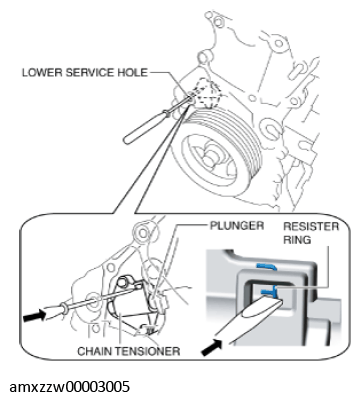

      Fig 8: Inserting Thin Flathead Screwdriver (Precision Screwdriver) Into Lower Service Hole
      G11429723Courtesy of MAZDA MOTORS CORP.
      CAUTION:
      • If excessive force is applied to the resister ring, it may cause the resister ring to deform. When pressing the resister ring, be careful not to apply excessive force.
      NOTE:
      • The plunger lock is released by pressing the chain tensioner resister ring.
    8. With the plunger lock released, rotate the exhaust camshaft clockwise until the timing chain loosens.

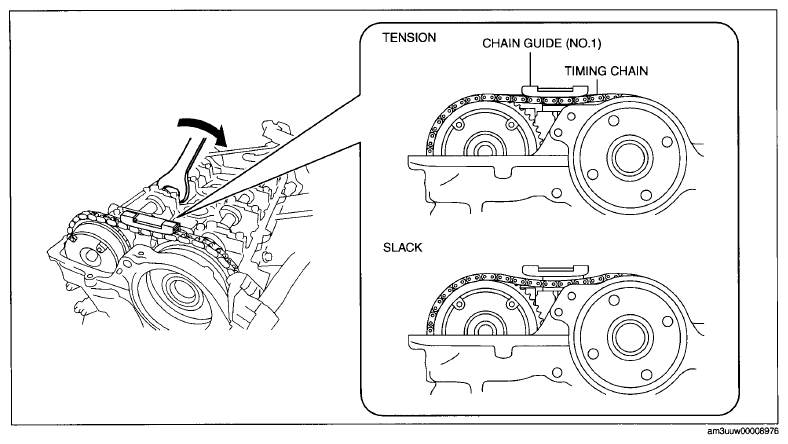

      Fig 9: Rotating Exhaust Camshaft Clockwise
      G09074214Courtesy of MAZDA MOTORS CORP.
    9. With the chain loosened, tighten the M6 bolt in the upper service hole so that the bolt is inserted approx. 5 mm {0.2 in} additionally to secure the tensioner arm.

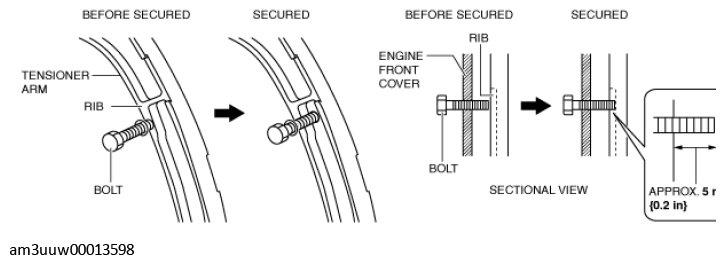

      Fig 10: Inserting M6 Bolt In Upper Service Hole
      G11550110Courtesy of MAZDA MOTORS CORP.
      • If the bolt cannot be inserted approx. 5 mm {0.2 in}, the plunger lock of the chain tensioner may not release, or the chain may not loosen enough. Return the bolt to the original position and restart the procedure from Step (5).
      NOTE:
      • By rotating the exhaust camshaft clockwise, the timing chain pushes the tensioner arm and the rib position deviates. The entire tensioner arm can be secured by hooking the bolt onto the deviated rib.
    10. After securing the tensioner arm, remove the chain guide (No. 1).
