Front Oil Seal Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Apply clean engine oil to the inner surface of a new front oil seal.
Insert the front oil seal into the engine front cover by hand.
Tap the oil seal in evenly using the SST and a hammer.

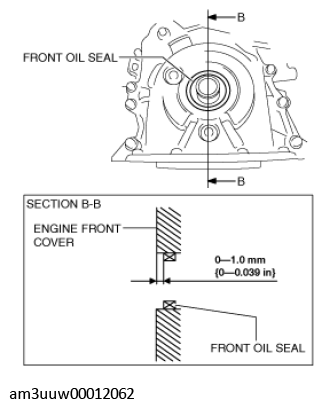

Fig 1: Inserting Front Oil Seal Into Engine Front Cover

Courtesy of MAZDA MOTORS CORP.

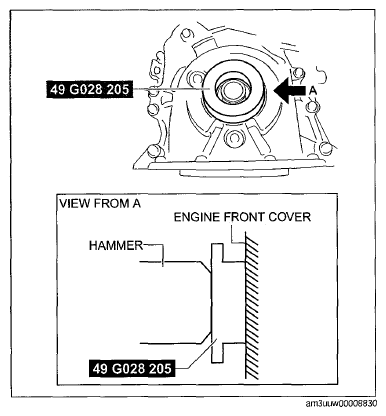

Fig 2: Taping Oil Seal Using SST And Hammer

Courtesy of MAZDA MOTORS CORP.

Front oil seal press on amount

0-1.0 mm {0-0.039 in}
