No. 4 engine mount bracket installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the No. 4 engine mount bracket, place a mark at the same position as the one placed before removal.
If the No. 4 engine mount bracket nut is loosened, tighten the transaxle stud bolts because they may have loosened.

Tighten the transaxle stud bolts.

Fig 1: Transaxle Stud Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

15-25 N.m {1.6-2.5 kgf.m, 12-18 ft.lbf}
Align the alignment marks on the No. 4 engine mount bracket and nuts, and temporarily tighten the nuts shown in the figure.

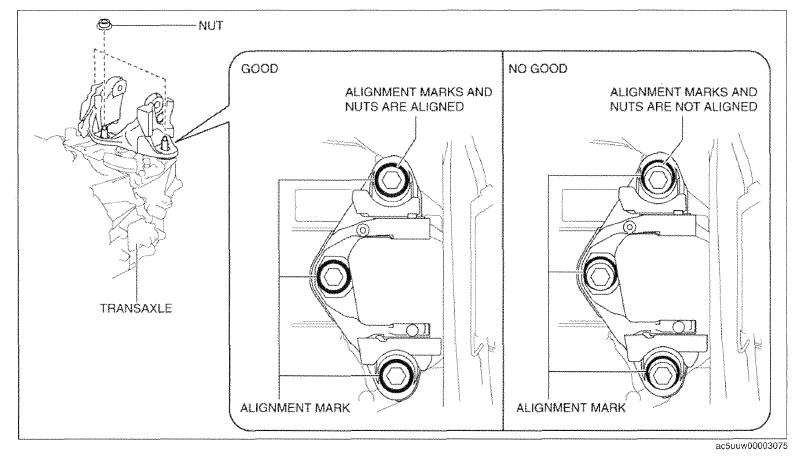

Fig 2: Aligning Alignment Marks On No. 4 Engine Mount Bracket And Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the No. 4 engine mount bracket installation nuts in the order shown in the figure.

Fig 3: No. 4 Engine Mount Bracket Installation Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

92-116 N.m {9.4-11 kgf.m, 68-85 ft.lbf}
Install the ground cable to the No. 4 engine mount bracket.

Fig 4: Removing No. 4 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.

Tightening torque

9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
