Drive Belt Auto TENSIONER Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

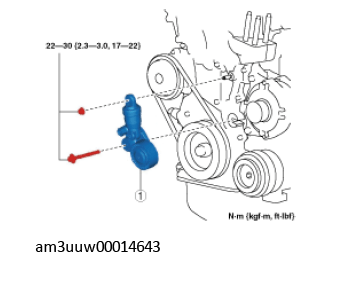

COMPONENT DESCRIPTION
| 1 | Drive beltautotensioner (See Drive Belt Auto Tensioner Installation Note .) |
