Vacuum Hose (Between Intake Manifold and Vacuum Pump) Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the vacuum hose (between intake manifold and vacuum pump) as shown in the figure.

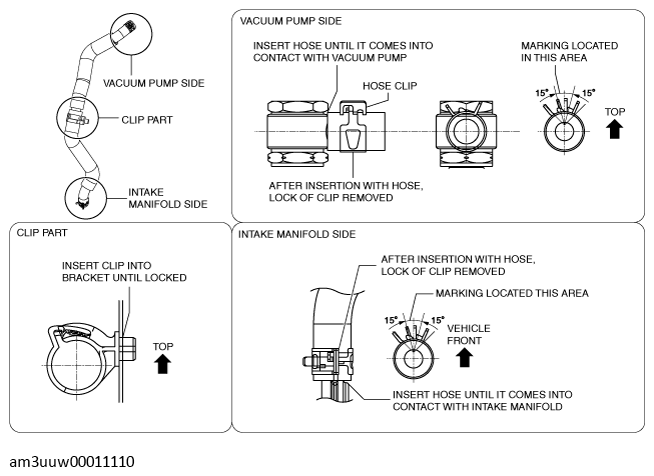

Fig 1: Installing Vacuum Hose Between Intake Manifold And Vacuum Pump

Courtesy of MAZDA MOTORS CORP.
