MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 2 REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Because the IAT sensor No. 2 is integrated in the MAP sensor, replacing the IAT sensor No. 2 includes replacement of the MAP sensor/IAT sensor No. 2.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the MAP sensor/IAT sensor No. 2 connector.
Remove the MAP sensor/IAT sensor No. 2.

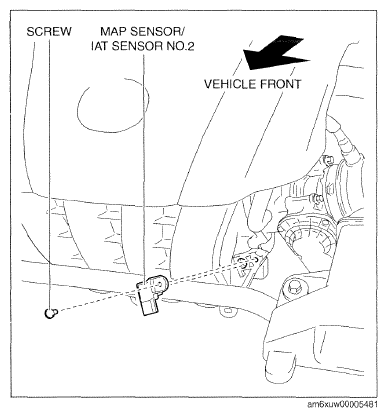

Fig 1: Removing MAP Sensor/IAT Sensor No. 2
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
