Assembly of Wiring Harness to Wire Clip Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

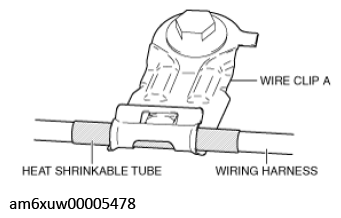

Secure the heat shrinkable tube on the wiring harness to wire clip A.

Fig 1: Securing Heat Shrinkable Tube On Wiring Harness To Wire Clip A
Courtesy of MAZDA MOTORS CORP.
Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure.

Fig 2: Securing Wiring Harness To Wire Clip B

Courtesy of MAZDA MOTORS CORP.
