SKYACTIV-G 2.5

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications before the engine is started to initiate the evaporative system test.
- IAT: 5-35 °C {41-95 °F}
- FLI: 15-85 %
- BARO: 72.2 kPa {0.736 kgf/cm ² , 10.5 psi}
Start the engine and warm it up completely.
Clear the DTCs from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE .)
Drive the vehicle as shown in the graph.

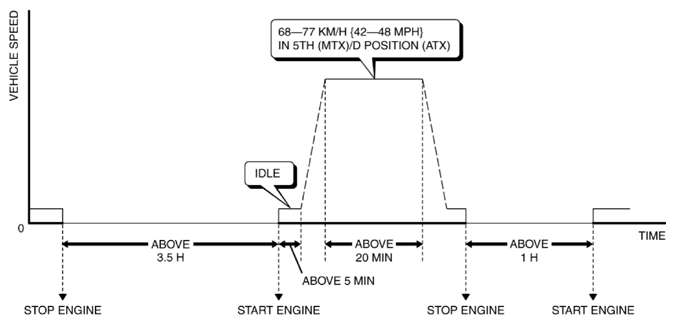

Fig 1: Drive Cycle Graph (SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.
- If completed, the OBD monitoring status items change from non-completed to completed.
- If not completed, switch the ignition off then go back to Step 1.
Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.
- If detected values are not within specification, repair has not been completed.
Verify that no DTCs are displayed.
