Rear Upper Arm Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Place alignment mark on the new rear upper arm in the same positions as the removed rear upper arm.

Fig 1: Identifying Alignment Marks On Rear Upper Arm
Courtesy of MAZDA MOTORS CORP.
Install the rear upper arm.
Lift up the rear crossmember component using a jack and install the rear crossmember installation bolts.

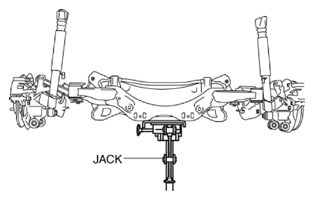

Fig 2: Lifting Up Rear Crossmember Component Using Jack

Courtesy of MAZDA MOTORS CORP.

Tightening torque

91-111 N.m {9.3-11 kgf.m, 68-81 ft.lbf}
