Rear Upper Arm Bushing Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Mark the rear upper arm as shown in the figure.

Fig 1: Identifying Marks On Rear Upper Arm
Courtesy of MAZDA MOTORS CORP.
Press the rear upper arm bushing out using the SSTs.

CAUTION:

Set using the SST(49 U034 204) as shown in the figure to prevent damaging the rear upper and rear upper arm bushing and remove the rear upper arm bushing.

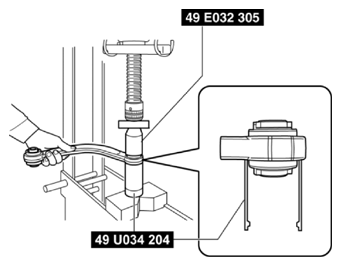

Fig 2: Removing Rear Upper Arm Bushing

Courtesy of MAZDA MOTORS CORP.
