Rear Upper Arm Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Jack up the vehicle to the unloaded condition, and support the rear trailing link component using a jack.

Fig 1: Supporting Rear Trailing Link Component Using Jack
Courtesy of MAZDA MOTORS CORP.
Align the rear crossmember component and rear upper arm and mark them.

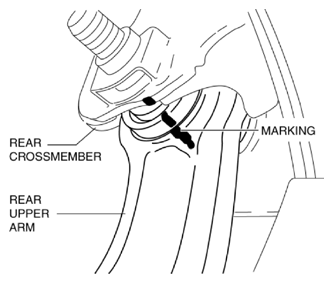

Fig 2: Identifying Marking On Rear Upper Arm
Courtesy of MAZDA MOTORS CORP.
Support the rear crossmember component with a jack and remove the rear crossmember installation nuts.

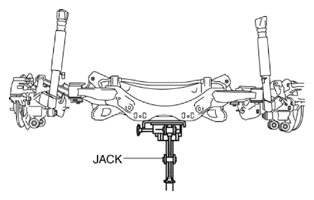

Fig 3: Supporting Rear Crossmember Component With Jack
Courtesy of MAZDA MOTORS CORP.
Press down on the rear crossmember component slowly until the rear upper arm inside installation bolts can be removed using a jack.

Fig 4: Pressing Down On Rear Crossmember Component
Courtesy of MAZDA MOTORS CORP.
Remove the rear upper arm.
