Rear Upper Arm Bushing Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Mark the rear upper arm as shown in the figure.

Fig 1: Identifying Mark On Rear Upper Arm
Courtesy of MAZDA MOTORS CORP.
Press the rear upper arm bushing out using the SSTs.

CAUTION:

Set using the SST(49 U034 204) as shown in the figure to prevent damaging the rear upper arm and rear upper arm bushing and remove the rear upper arm bushing.

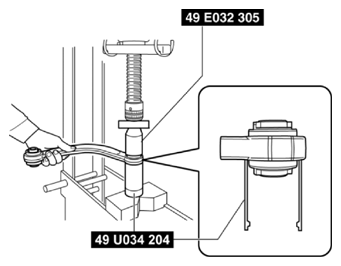

Fig 2: Removing Rear Upper Arm Bushing

Courtesy of MAZDA MOTORS CORP.
