Rear Stabilizer Component Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Support the rear crossmember component with a jack and remove the rear crossmember installation nuts.

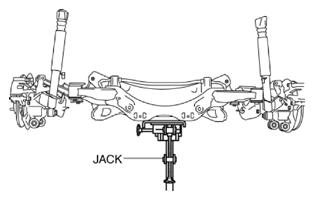

Fig 1: Supporting Rear Crossmember Component With Jack
Courtesy of MAZDA MOTORS CORP.
Press down on the rear crossmember component until the rear stabilizer component can be removed from the vehicle using a jack.

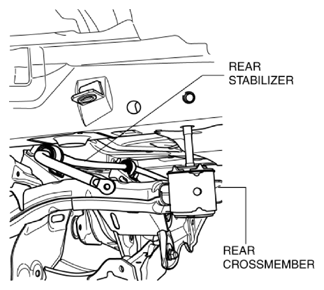

Fig 2: Identifying Rear Stabilizer And Crossmember

Courtesy of MAZDA MOTORS CORP.
