Rear Stabilizer Component Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily tighten bolts A and B shown in the figure.

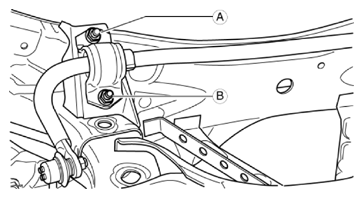

Fig 1: Identifying Rear Stabilizer Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten bolt A.
Tightening torque
- 21-26 N.m {9.3-11 kgf.m, 16-19 ft.lbf}
Tighten bolt B.
Tightening torque
- 21-26 N.m {9.3-11 kgf.m, 16-19 ft.lbf}
Tighten bolt A.
Tightening torque
- 21-26 N.m {9.3-11 kgf.m, 16-19 ft.lbf}
Lift up the rear crossmember component using a jack and install the rear crossmember installation nuts.

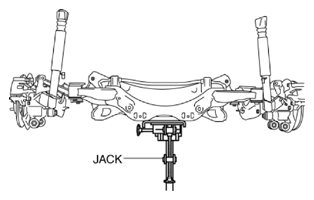

Fig 2: Lifting Up Rear Crossmember Component Using Jack
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 91-111 N.m {9.3-11 kgf.m, 68-81 ft.lbf}
