Rear Stabilizer Bushing, Rear Stabilizer Bracket Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not apply grease to the contact surface of the stabilizer bushing and the stabilizer bar. Otherwise, the stabilizer function may deteriorate.
Verify that there is no dirt or oil on the stabilizer bushing and the stabilizer bar. Wipe off any dirt or oil on the stabilizer bushing and the stabilizer bar.

Install the rear stabilizer bushing with the slit pointing toward the front of the vehicle.

Fig 1: Installing Rear Stabilizer Bushing With Slit
Courtesy of MAZDA MOTORS CORP.
Install the rear stabilizer bracket to the front stabilizer bushing by hand using the following procedure.
If the rear stabilizer bracket cannot be installed by hand, install it using a vice.
CAUTION:
- If the rear stabilizer bracket is installed using a vice, it could be deformed.

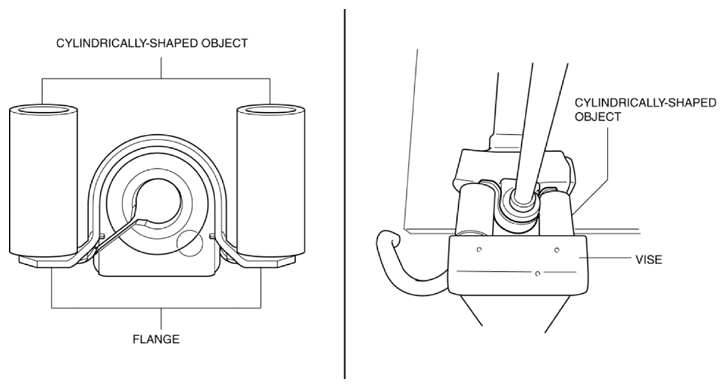

- Set a cylindrically-shaped object as shown in the figure so that pressure is applied to the rear stabilizer bracket flange, and install the rare stabilizer bracket to the rare stabilizer bushing.
Fig 2: Installing Rare Stabilizer Bracket To Rare Stabilizer Bushing
Courtesy of MAZDA MOTORS CORP.
During rear stabilizer bracket installation, keep the deviation in the positions of the rear stabilizer bracket and the rear stabilizer bushing within the range shown in the figure.

Fig 3: Identifying Rear Stabilizer Bracket Width Dimension
Courtesy of MAZDA MOTORS CORP.
- W¹ : 0.5 mm {0.21 in} max.
- W² : 2 mm {0.08 in} max.
After installing the rear stabilizer bracket, verify that the positions of the rear stabilizer bracket and the rear stabilizer bushing are within the range shown in the figure.

Fig 4: Identifying Rear Stabilizer Bracket Height Dimension
Courtesy of MAZDA MOTORS CORP.
- H¹ : 13 mm {0.51 in} max.
After installing the rear stabilizer bracket, verify that the right and left-side positions of the rear stabilizer bracket are within the range shown in the figure.

Fig 5: Identifying Rear Stabilizer Bracket Height Dimensions (Left And Right Side)
Courtesy of MAZDA MOTORS CORP.
- H² : 3 mm {0.1 in} max.
Place the rear stabilizer component on a level workbench, and verify that it is within the range shown in the figure.

Fig 6: Positioning Rear Stabilizer Component On Level Workbench

Courtesy of MAZDA MOTORS CORP.

H³ : 61.5-81.5 mm {2.43-3.20 in}
