Rear Stabilizer Removal/Installation (2WD): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  1. Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.
CAUTION:
  • Performing the following procedures without first removing the rear ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the rear ABS wheel-speed sensor wiring harness (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
  1. Switch the ignition ON (engine off).
  2. Release the electric parking brake.
  3. Switch the ignition off.
  4. Disconnect the auto leveling sensor link. (With auto leveling sensor) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)

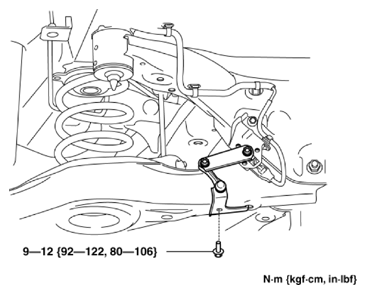

    Fig 1: Identifying Auto Leveling Sensor Link Bolt With Torque Specifications
    G10936497Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the wiring harness clips and connector installed to the rear crossmember. (With auto leveling sensor)
    Fig 2: Locating Wiring Harness Clips
    G10936498Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the rear ABS wheel-speed sensor wiring harness and the electric parking brake motor gear unit connector and set it aside so that it does not interfere with the servicing. (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION (2WD) .)

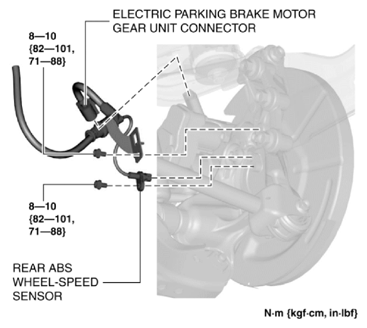

    Fig 3: Identifying Rear ABS Wheel-Speed Sensor Wiring Harness Bolts With Torque Specifications
    G10936499Courtesy of MAZDA MOTORS CORP.
  7. Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  8. Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION .)
  9. Remove in the order indicated in the table.
  10. Install in the reverse order of removal.
  11. Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

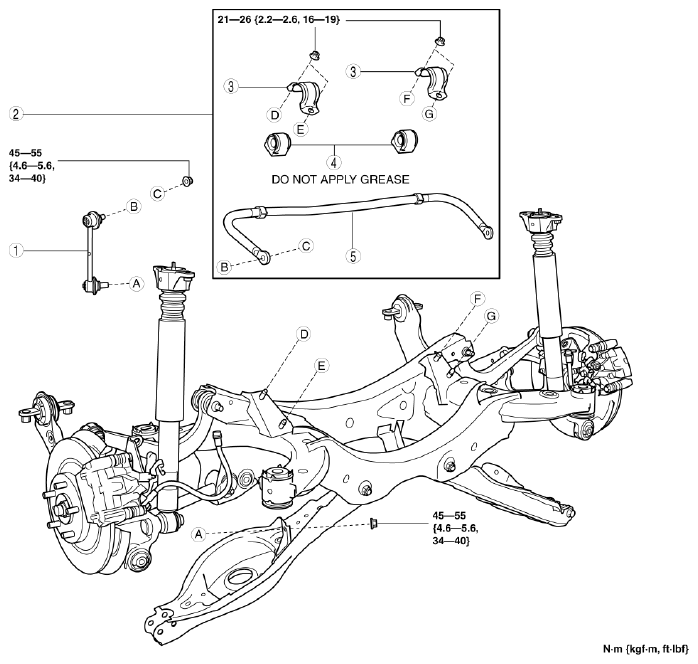

Fig 4: Rear Stabilizer Components With Torque Specifications
G10936500Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear stabilizer control link
2 Rear stabilizer component
(See Rear Stabilizer Component Removal Note .)
(See Rear Stabilizer Component Installation Note )
3 Rear stabilizer bracket
(See Rear Stabilizer Component Installation Note .)
4 Rear stabilizer bushing
(See Rear Stabilizer Component Installation Note .)
5 Rear stabilizer
