Rear Shock Absorber Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

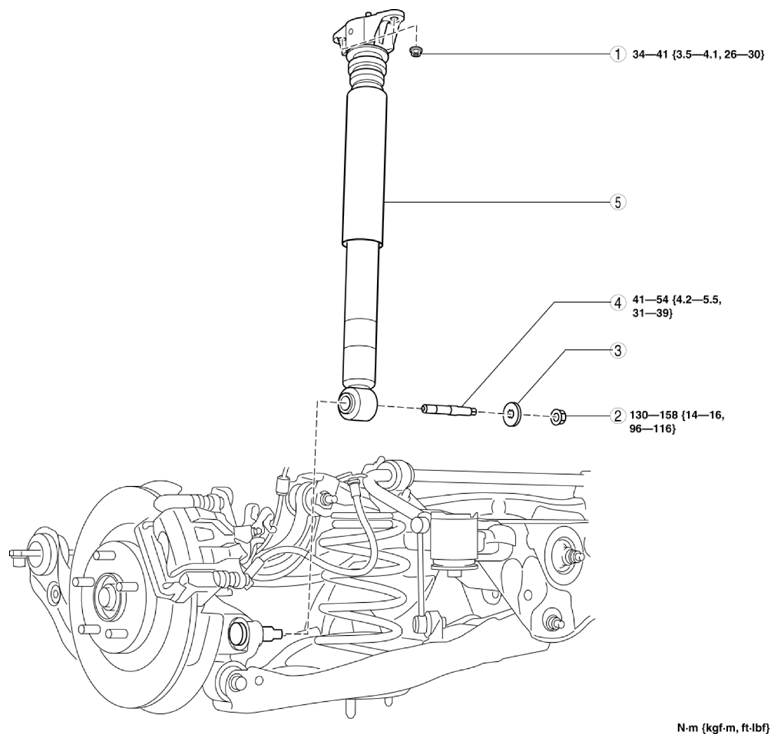

COMPONENT DESCRIPTION
| 1 | Rear shock absorber upper nut (See Rear Shock Absorber Upper Nut Installation Note .) |
| 2 | Rear shock absorber lower nut |
| 3 | Washer |
| 4 | Stud bolt |
| 5 | Rear shock absorber |
