Rear Lateral Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the rear stabilizer control link lower side nut. (See REAR STABILIZER REMOVAL/INSTALLATION (2WD) .) (See REAR STABILIZER REMOVAL/INSTALLATION (AWD) .)

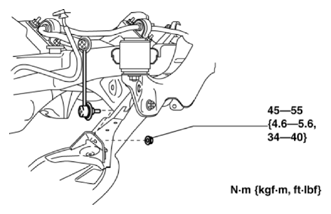

Fig 1: Identifying Rear Stabilizer Control Link Lower Side Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

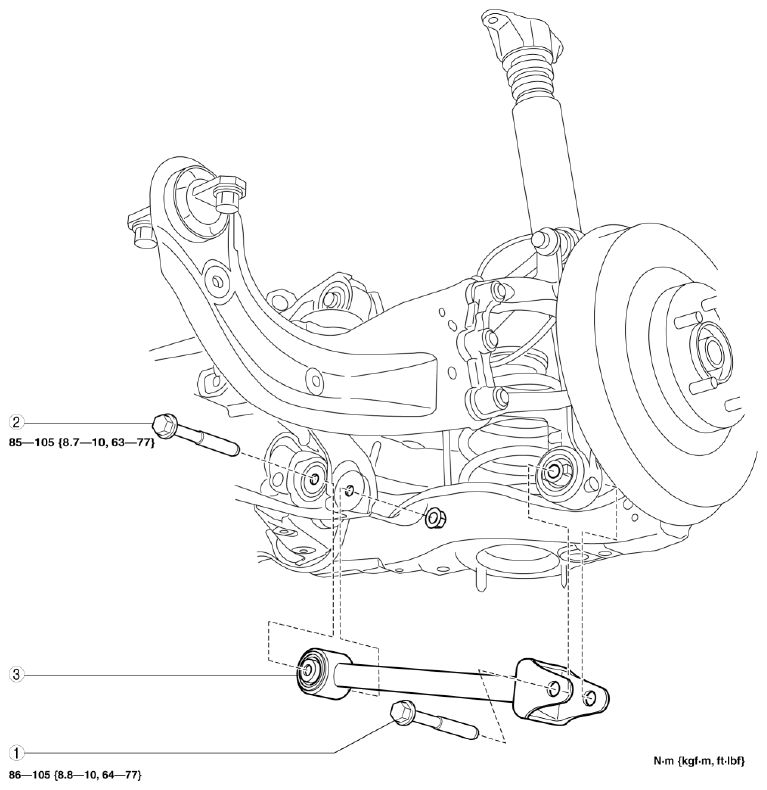

Fig 2: Rear Lateral Link Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear lateral link outer bolt
2	Rear lateral link inner bolt
3	Rear lateral link (See Rear Lateral Link Removal Note .) (See Rear Lateral Link Installation Note .)
