Rear Crossmember Component Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.

Support the rear crossmember component with the jack and remove the nut.

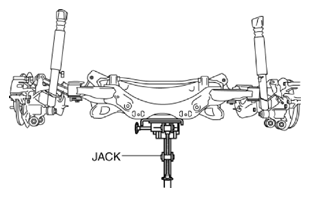

Fig 1: Supporting Rear Crossmember Component With Jack
Courtesy of MAZDA MOTORS CORP.
Remove the rear crossmember component.
