Rear Crossmember Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the rear crossmember, install the rivet nut using a rivet nut tool.

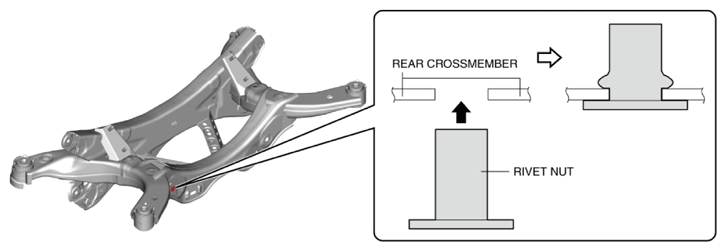

Fig 1: Installing Rivet Nut Using Rivet Nut Tool

Courtesy of MAZDA MOTORS CORP.
