Rear Crossmember Component Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  1. Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.
  1. Support the rear crossmember component and install the rear crossmember.

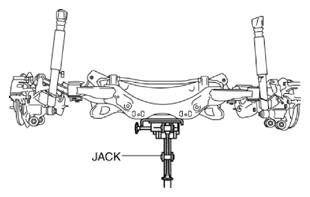

Fig 1: Supporting Rear Crossmember Component
G10936537Courtesy of MAZDA MOTORS CORP.
