DTC U0305-00: Radar Unit Error: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| DTC U0305:00 |
Radar unit error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between radar unit and PCM
- Radar unit internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- CAN drive error (instrument cluster or PCM)
- CAN communication line malfunction between radar unit and PCM

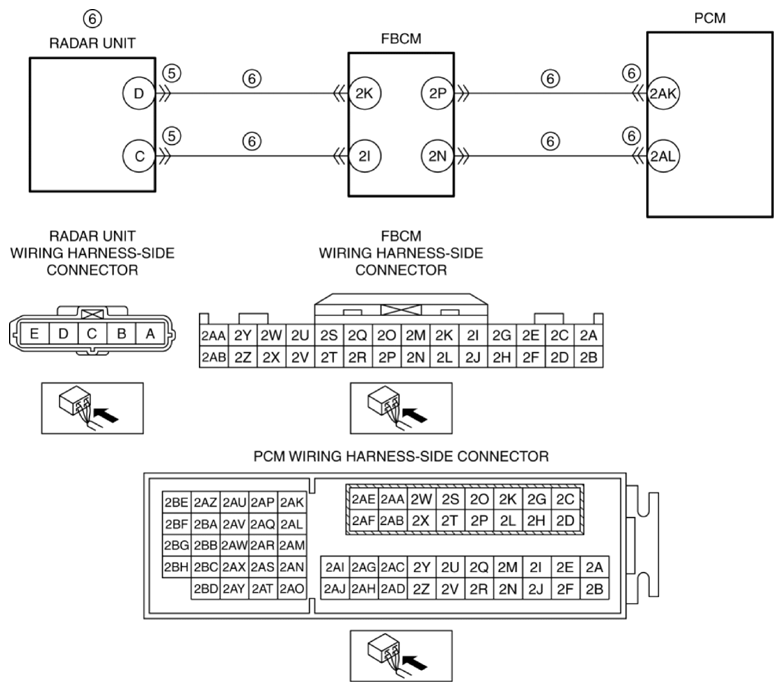

- Radar unit terminal D-Front body control module (FBCM) terminal 2K
- Radar unit terminal C-Front body control module (FBCM) terminal 2I
- Front body control module (FBCM) terminal 2P-PCM terminal 2AK
- Front body control module (FBCM) terminal 2N-PCM terminal 2AL
- Front body control module (FBCM) malfunction
- Radar unit connector or terminals malfunction
- PCM connector or terminals malfunction
- Radar unit malfunction
- PCM malfunction
|
|
|
