Section 85 (On-Board Diagnostics [Electric Parking Brake])
>>
On-Board Diagnostic Wiring Diagram [Electric Parking Brake]
On-Board Diagnostic Wiring Diagram [Electric Parking Brake]
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

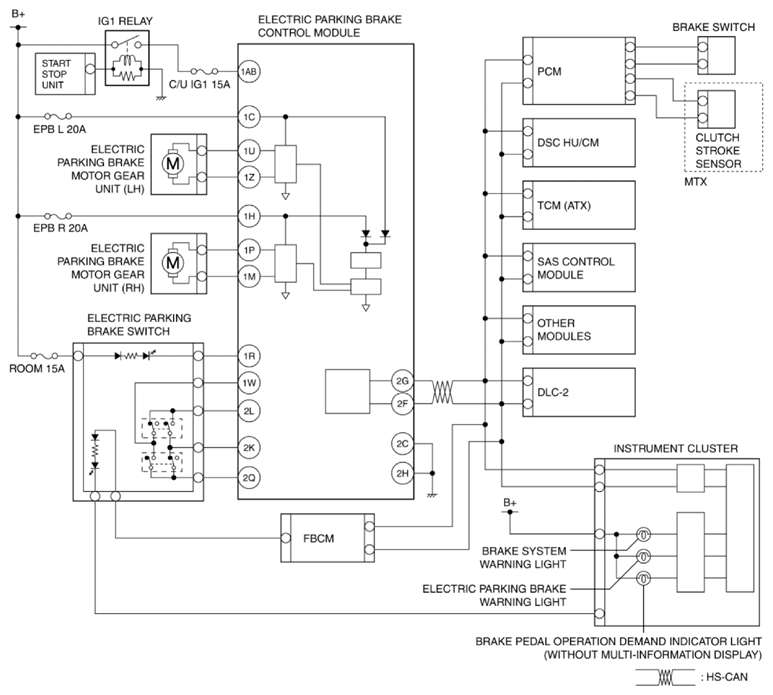

Fig 1: On-Board Diagnostic Wiring Diagram (Electric Parking Brake)
Courtesy of MAZDA MOTORS CORP.
