Connector Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially peel back the rubber boot in the direction of arrow (1) shown in the figure and remove it from the connector.

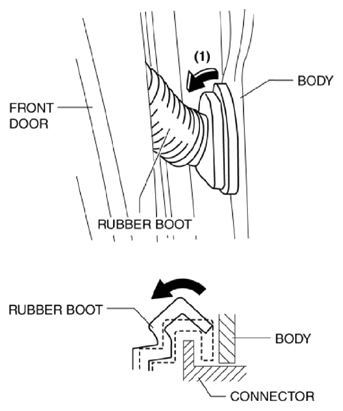

    Fig 1: Peeling Back Rubber Boot
    G10938344Courtesy of MAZDA MOTORS CORP.
  2. Using a tape-wrapped flathead screwdriver, press tabs A in the directions of arrows (2) and (3) shown in the figure and remove the upper part of the connector from the body in the direction of arrow (4).

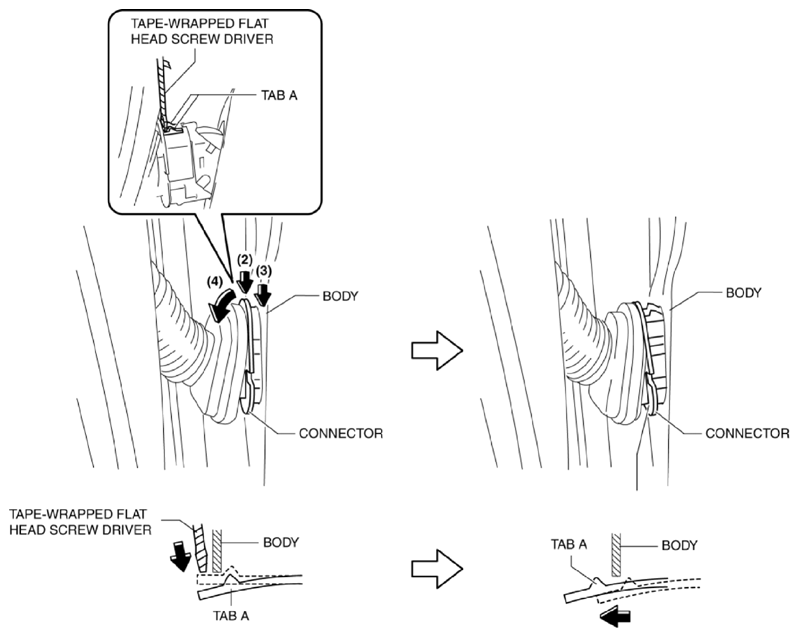

    Fig 2: Removing Upper Part Of Connector From Body
    G10938345Courtesy of MAZDA MOTORS CORP.
  3. Using a tape-wrapped flathead screwdriver, press tabs B in the directions of arrows (5) and (6) shown in the figure and remove the connector from the body in the direction of arrow (7).

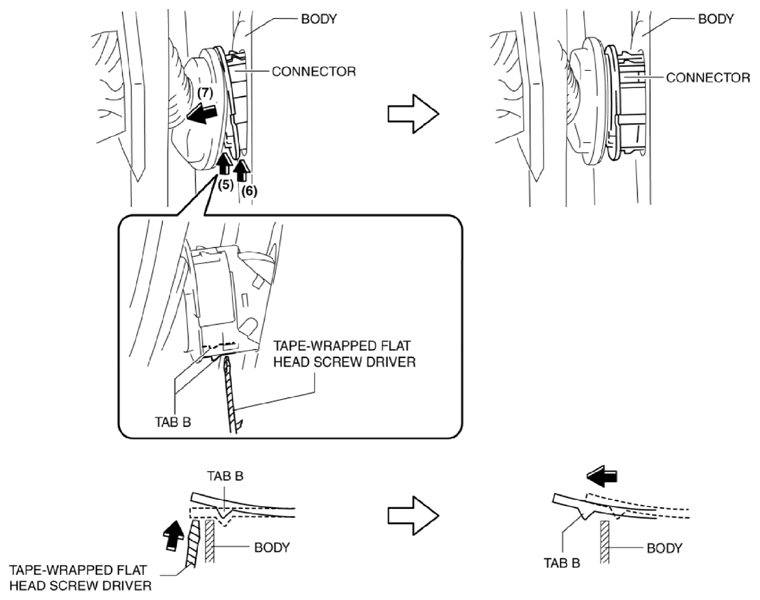

    Fig 3: Removing Connector From Body
    G10938346Courtesy of MAZDA MOTORS CORP.
  4. Lower the lever in the direction of arrow (8), and disconnect the connector in the direction of arrow (9).

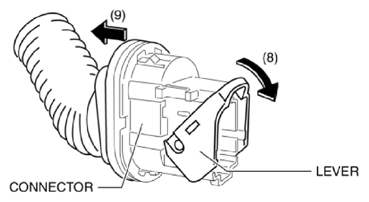

Fig 4: Lowering Lever
G10938347Courtesy of MAZDA MOTORS CORP.
