Propeller Shaft Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not mark with a punch to prevent imbalance.
  1. Before removing the nut, place alignment marks on the companion flange (front) and constant velocity joint, and on the coupling component (rear) and yoke.

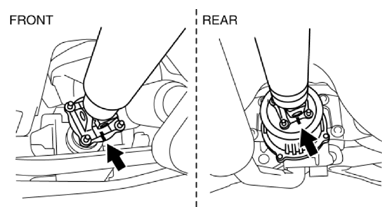

    Fig 1: Locating Alignment Marks On Companion Flange
    G10936726Courtesy of MAZDA MOTORS CORP.
  2. Loosen the nuts (front, rear, center bearing support).
  3. Remove the front and rear nuts.
    CAUTION:
    • Propeller shaft is attached to the stud.
  4. Press the propeller shaft and remove it from the rear side.
    CAUTION:
    • Do not bend the propeller shaft to the extent that it interferes with the boot.
  5. Remove the center bearing support nut, then remove the propeller shaft
