Joint Area Excessive Play Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shake the universal joint by hand and verify that there is no excessive play.

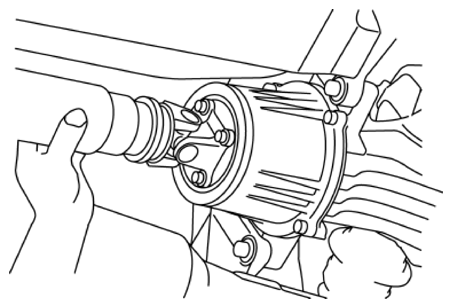

    Fig 1: Measuring Universal Joint Excessive Play
    G10936731Courtesy of MAZDA MOTORS CORP.
  2. If there is any excessive play, replace the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
