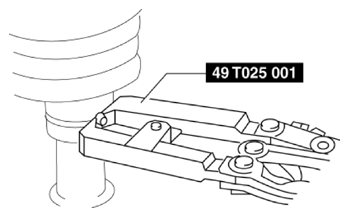

Adjust opening A of the SST to the standard by rotating the adjustment bolt.

Fig 1: Adjusting SST Opening
Courtesy of MAZDA MOTORS CORP.

Standard A
- Large diameter side: Approx. 3.3 mm {0.13 in}
- Small diameter side: Approx. 2.8 mm {0.11 in}
Crimp the boot band using the SST .
Large diameter side

Fig 2: Crimping Boot Band (Large Diameter Side)
Courtesy of MAZDA MOTORS CORP.

Small diameter side

Fig 3: Crimping Boot Band (Small Diameter Side)
Courtesy of MAZDA MOTORS CORP.
Verify that crimp B of the boot band is within the standard.

Fig 4: Identifying Boot Band Crimp Dimension
Courtesy of MAZDA MOTORS CORP.

Standard B
- Large diameter side: 1.3 mm {0.051 in} or less
- Small diameter side: 1.2 mm {0.047 in} or less
  - If width B of the crimp exceeds the standard, decrease opening A of the SST and crimp the boot band again.
Verify that the boot band does not protrude from the band assembly area.
- If the boot band protrudes from the assembly area, replace it with a new one and repeat Steps 1 to 3.
