Boot Band (Transaxle Side Smaller Diameter) Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the boot band using end clamp pliers.

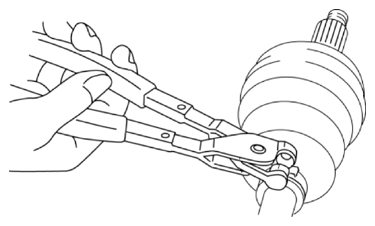

Fig 1: Removing Boot Band Using End Clamp Pliers
G10936606Courtesy of MAZDA MOTORS CORP.
