Boot Band (Transaxle Side Smaller Diameter) Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Adjust opening C of the SST to the standard by rotating the adjustment bolt.

Fig 1: Adjusting SST Opening
Courtesy of MAZDA MOTORS CORP.

Standard C
- Approx. 2.0 mm {0.079 in}

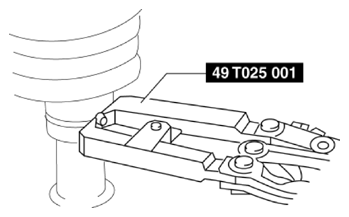

Crimp the boot band using the SST .

Fig 2: Crimping Boot Band
Courtesy of MAZDA MOTORS CORP.
Verify that crimp D of the boot band is within the standard.

Fig 3: Identifying Boot Band Crimp Dimension
Courtesy of MAZDA MOTORS CORP.

Standard D
- 0.8 mm {0.03 in} or less
- If crimp D exceeds the standard, decrease opening C of the SST and crimp the boot band again.
Verify that the boot band does not protrude from the band assembly area.
- If the boot band protrudes from the assembly area, replace it with a new one and repeat Steps 1 to 3.
