Boot Band (Transaxle Side Larger Diameter) Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the boot band at the point shown in the figure using pliers, and remove the band.

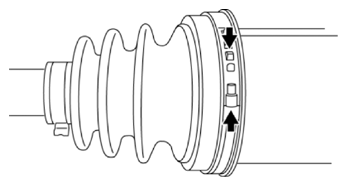

Fig 1: Locating Boot Bands
G10936605Courtesy of MAZDA MOTORS CORP.
