Boot Band (Transaxle Side Larger Diameter) Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the boot band at the point shown in the figure using pliers and tighten the boot band.

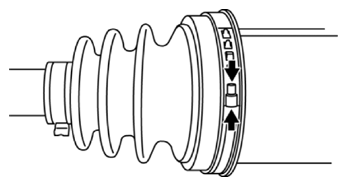

Fig 1: Locating Boot Band
G10936635Courtesy of MAZDA MOTORS CORP.
