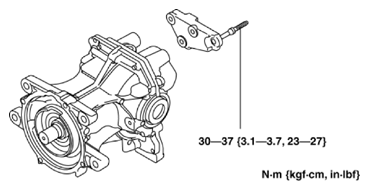

Rear Differential Mounting Bracket Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Retighten the rear differential mounting bracket stud bolt when the rear differential mounting bracket nut is loosened.
- Tighten the rear differential mounting bracket stud bolt.
Tightening torque
- 30-37 N.m {3.1-3.7 kgf.m, 23-27 ft.lbf}
