Rear Differential Component Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Support the rear differential using a jack.

Fig 1: Supporting Rear Differential Using Jack
Courtesy of MAZDA MOTORS CORP.

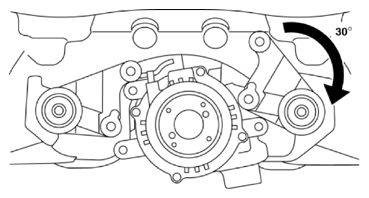

Loosen the differential mounting bracket bolt and rotate the bracket as shown in the figure.

Fig 2: Rotating Bracket
Courtesy of MAZDA MOTORS CORP.

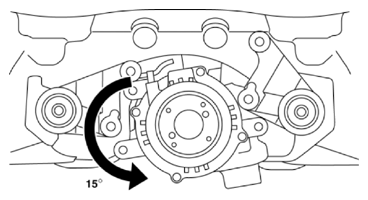

Rotate the rear differential as shown in the figure, and then remove the rear differential.

Fig 3: Rotating Rear Differential

Courtesy of MAZDA MOTORS CORP.
