Clearance Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ABS wheel-speed sensor.
Measure the distance between the ABS wheel-speed sensor installation surface and the ABS sensor rotor. This is dimension A.

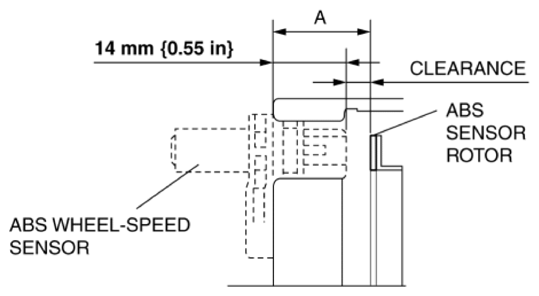

Fig 1: Measuring Distance Between ABS Wheel-Speed Sensor Installation Surface And ABS Sensor Rotor
Courtesy of MAZDA MOTORS CORP.
Calculate the clearance between the front ABS wheel-speed sensor and the ABS sensor rotor using the following formula:
- Clearance (mm) = A-14 {0.55}
Verify that the clearance between the ABS sensor rotor and the ABS wheel-speed sensor is as indicated below.
- If there is any malfunction, replace it.
  Clearance
- 0.28-1.17 mm {0.012-0.046 in}
