Front ABS Wheel-Speed Sensor Wiring Harness and Clip Disconnection Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

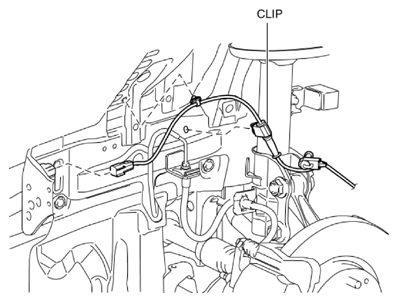

Fig 1: Identifying Front ABS Wheel-Speed Sensor Wiring Harness Clip

Courtesy of MAZDA MOTORS CORP.

Insert a flathead screwdriver from the side where there is no notch as shown in the figure.

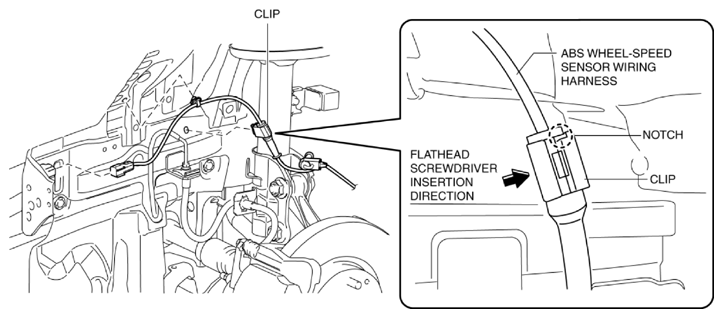

Fig 2: Locating Front ABS Wheel-Speed Sensor Clip
Courtesy of MAZDA MOTORS CORP.
Detach the tab as shown in the figure and disconnect the ABS wheel-speed sensor wiring harness and clip.

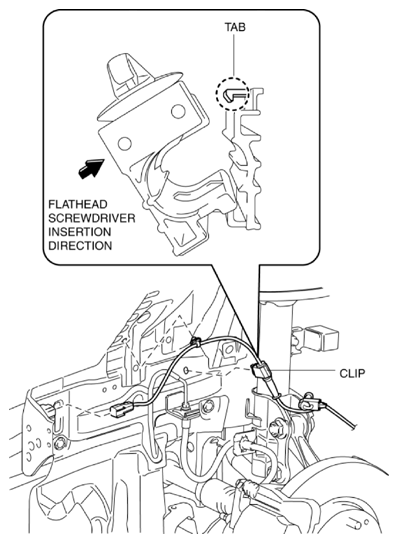

Fig 3: Locating Front ABS Wheel-Speed Sensor Tab

Courtesy of MAZDA MOTORS CORP.
