DSC HU/CM Connector Removal Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

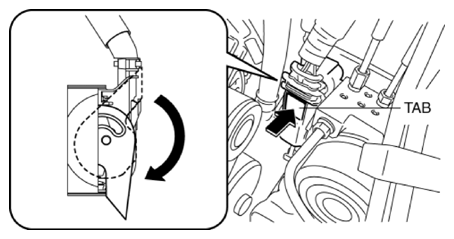

- Pull the lock lever down in the direction of the arrow while pressing the tab of the connector cover.
Courtesy of MAZDA MOTORS CORP.
- Pull the connector toward the vehicle rear and remove it.
