No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note: AWD

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the No. 1 engine mount rubber and bracket plate.

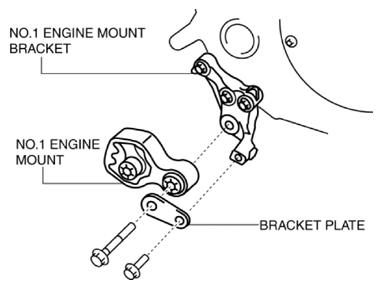

Fig 1: Identifying Engine Mount Rubber And Bracket Plate
Courtesy of MAZDA MOTORS CORP.
Tighten the No. 1 engine mount rubber and bracket plate installation bolts.

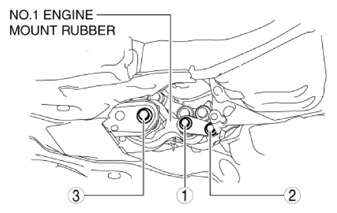

Fig 2: Identifying Engine Mount Rubber And Bracket Plate Installation Bolts

Courtesy of MAZDA MOTORS CORP.

No.	Tightening torque
1	140-163 N.m {15-16 kgf.m, 104-120 ft.lbf}
2	55-69 N.m {5.7-7.0 kgf.m, 41-50 ft.lbf}
3	130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
