No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note: 2WD

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the bracket plate (No. 1) and No. 1 engine mount rubber.

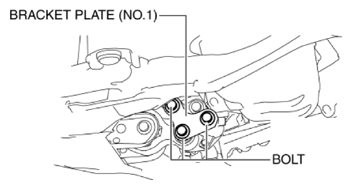

Fig 1: Bracket Plate Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tighten the bracket plate (No. 1) installation bolts in the order shown in the figure.

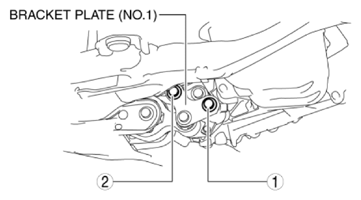

Fig 2: Bracket Plate Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

No.	Tightening torque
1	84-98 N.m {8.6-9.9 kgf.m, 62-72 ft.lbf}
2	84-98 N.m {8.6-9.9 kgf.m, 62-72 ft.lbf}

Tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.

Fig 3: Engine Mount Rubber Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

No.	Tightening torque
1	140-163 N.m {15-16 kgf.m, 104-120 ft.lbf}
2	130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
