System wiring diagram

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

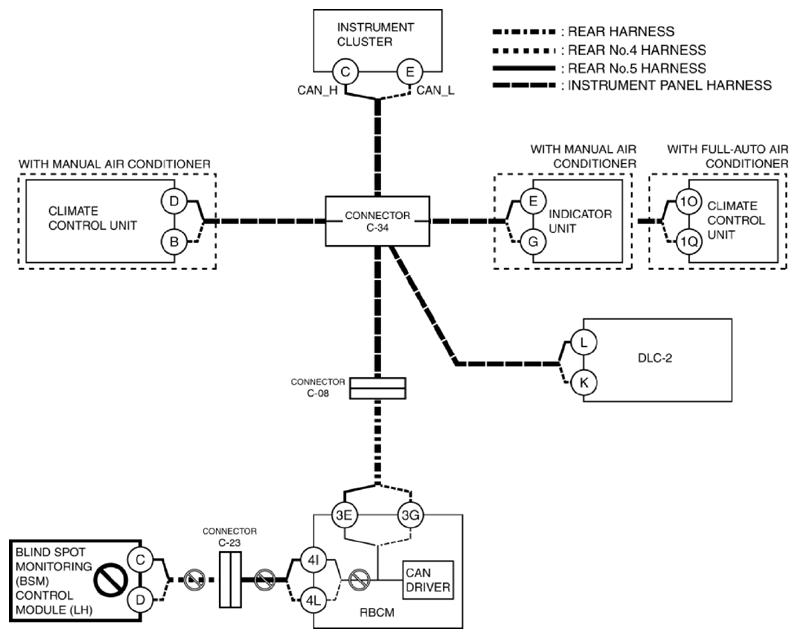

Fig 1: Blind Spot Monitoring Control Module (LH) System Diagram
G10939877Courtesy of MAZDA MOTORS CORP.
