MS-CAN Signal Waveform

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAN circuit condition Signal waveform (reference)
Normal

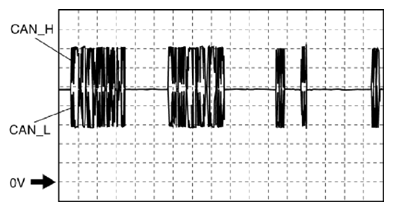

G10939801
  • CAN_H
    • Connection terminal: DLC-2: terminal L (+) ↔ Body ground (-)
    • Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
  • CAN_L
    • Connection terminal: DLC-2: terminal K (+) ↔ Body ground (-)
    • Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
